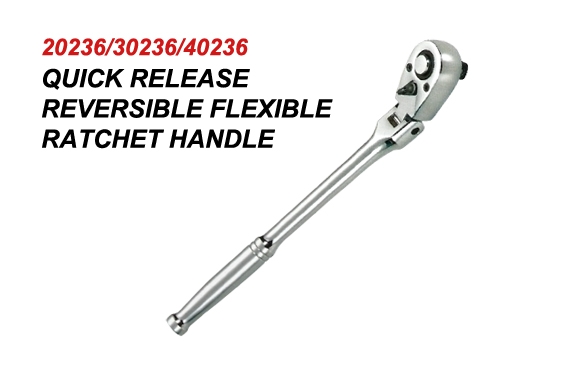

Quick Release Reversible Flexible Ratchet Handle
Specifications
| Part No. | Torque Comparison | |||||||||
| 36T | 48T | 72T | Size | L(mm) | Width | Chief | Ansi | Din | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 20236 | 20248 | 20272 | 1/4"Dr. | 141mm | 25mm | 27mm | 167g | 82N.M | 51N.M | 62N.M |
| 30236 | 30248 | 30272 | 3/8"Dr. | 288mm | 33mm | 32mm | 480g | 275N.M | 204N.M | 202N.M |
| 40236 | 40248 | 40272 | 1/2"Dr. | 310mm | 42mm | 42mm | 798g | 714N.M | 509N.M | 512N.M |
| Packing(T1) | |||||
| Size | Inner box | CTN | NW | GW | CUFT |
|---|---|---|---|---|---|
| 1/4"Dr. | 25 | 100 | 17.0kg | 18.0kg | 1.4' |
| 3/8"Dr. | 6 | 36 | 18.0kg | 19.0kg | 1' |
| 1/2"Dr. | 6 | 24 | 19.2kg | 20.2kg | 1.2' |
