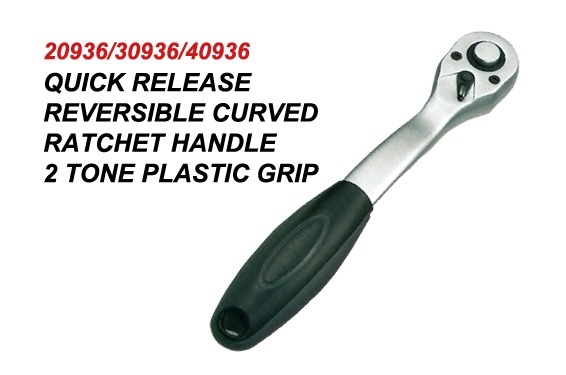

Quick Release Reversible Curved Ratchet Handle 2 Tone Plastic Grip
Specifications
| Part No. | Torque Comparison | |||||||||
| 36T | 48T | 72T | Size | L(mm) | Width | Chief | Ansi | Din | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 20936 | 20948 | 20972 | 1/4"Dr. | 145mm | 25mm | 27.8mm | 134g | 82N.M | 51N.M | 62N.M |
| 30936 | 30948 | 30972 | 3/8"Dr. | 205mm | 33mm | 31.5mm | 296g | 275N.M | 204N.M | 202N.M |
| 40936 | 40948 | 40972 | 1/2"Dr. | 255mm | 42mm | 40mm | 584g | 714N.M | 509N.M | 512N.M |
| Packing(T2) | |||||
| Size | Inner box | CTN | NW | GW | CUFT |
|---|---|---|---|---|---|
| 1/4"Dr. | 25 | 100 | 15.0kg | 16.0kg | 1' |
| 3/8"Dr. | 12 | 48 | 15.6kg | 16.6kg | 0.8' |
| 1/2"Dr. | 6 | 24 | 14.7kg | 15.7kg | 0.8' |
