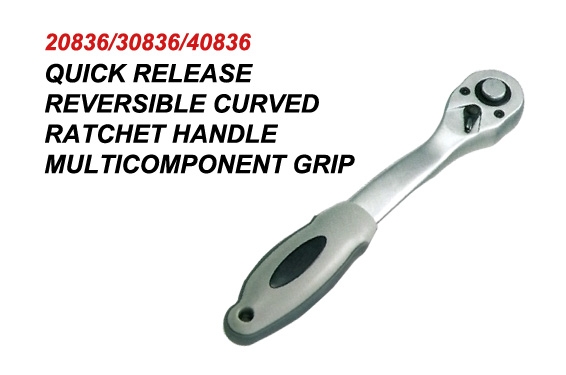

Quick Release Reversible Curved Ratchet Handle Multi Compound Grip
Specifications
| Part No. | Torque Comparison | |||||||||
| 36T | 48T | 72T | Size | L(mm) | Width | Chief | Ansi | Din | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 20836 | 20848 | 20872 | 1/4"Dr. | 145mm | 25mm | 26.5mm | 130g | 82N.M | 51N.M | 62N.M |
| 30836 | 30848 | 30872 | 3/8"Dr. | 200mm | 33mm | 32mm | 288g | 275N.M | 204N.M | 202N.M |
| 40836 | 40848 | 40872 | 1/2"Dr. | 255mm | 42mm | 40mm | 570g | 714N.M | 509N.M | 512N.M |
| Packing(T2) | |||||
| Size | Inner box | CTN | NW | GW | CUFT |
|---|---|---|---|---|---|
| 1/4"Dr. | 25 | 100 | 15.2kg | 16.2kg | 1' |
| 3/8"Dr. | 12 | 48 | 15.1kg | 16.1kg | 0.8' |
| 1/2"Dr. | 6 | 24 | 14.4kg | 15.4kg | 0.8' |
